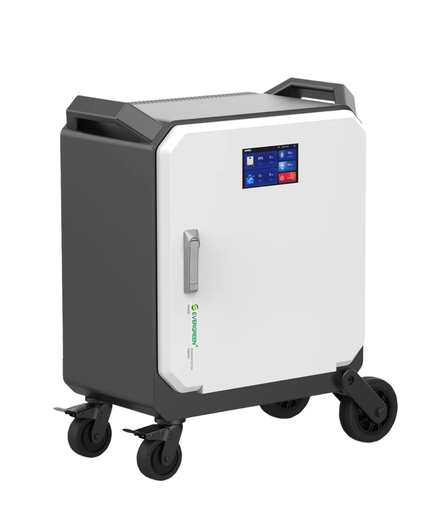

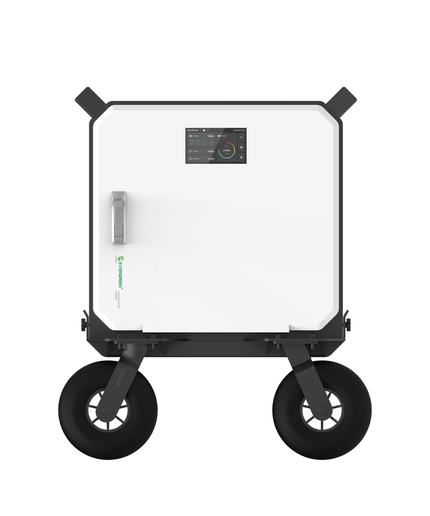

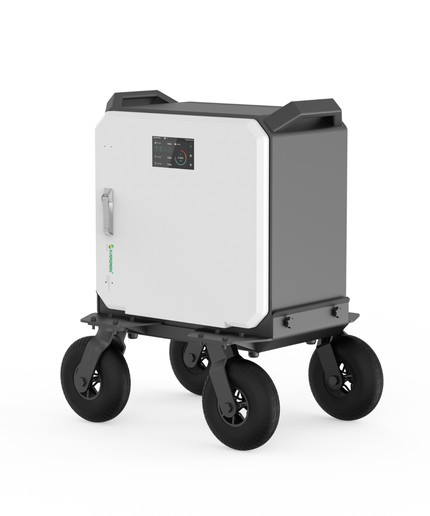

Power Station M5000
Introducing the most powerful power station on the market, the Power Station M5000-US, an all-in-one power solution designed to provide... Read more Read more
- Free pickup in our shop(s)
SKU: M5000
Share with your friends Share WhatsApp Deel Messenger Email
Specifications
- Model: M5000-US
- Battery Capacity: 5.12 kWh (Expandable up to 15.36 kWh with 2 EBMs*)
- Cell Chemistry: LiFePO₄ (Lithium Iron Phosphate Battery)
- Life Cycle: >6000 cycles (at 25°C)
- Management System: (BMS) OVP. UVP. OCP. SCP. OTP. UTP
- Status Indicator: Mobile App / LCD Screen / Web
- Operating Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Material: Metal
- Weight: 115 kg (253.5 lbs)
- Dimensions (L x W x H): 640 x 408 x 640 mm (25.2 x 16.1 x 25.2 in)
- *EBM: Extra Battery Module.
- Solar Input: (PV)
- Maximum Solar Power: 10
- 000 W (10 kW): 000 W (10 kW)
- Number of MPPT Followers: 4
- Chains per MPPT: 1
- Maximum Input Voltage: 550 V DC
- MPPT Voltage Range: 85V - 500V DC
- Starting Voltage: 85 V
- Nominal Voltage: 360 V
- Maximum current per MPPT: 14.0 A
- Short-circuit current per MPPT: 16.0 A
- AC Input: AC Input
- Nominal Input Power: 4.8 kW
- Nominal Input Current: 20.0 A
- Maximum Input Current: 25.0 A
- Nominal Output Voltage Single-phase: 240V (216V~264V)
- Input Mode: Single-phase or Two-phase
- Mains Frequency: 50/60 Hz
- Power Factor: 0.99 (Inductive or Capacitive)
- Total Harmonic Distortion (THDI): < 3%
- AC Output: AC Output
- ACH1 Port: 4 x NEMA 5-20R (120V. 60Hz) / Max. 5kW
- ACH2 port: 1 x NEMA TT-30R (120V.60Hz) / Max. 3.6kW
- ACH3 port: 1 x NEMA L14-30R (120V/240V. 60Hz) / Max. 5kW
- Nominal Output Voltage: 240V
- Voltage THD (THDv) < 3%: Voltage THD (THDv) < 3%
- Switching Time (UPS): 15 ms
- Peak Output Power: >200% (>10 kW)
- Protections: Protections
- Regulatory Compliance: Regulatory Compliance
- Protection Level: (Class) I
- Surge Resistance Level: DC II / AC III
- Safety Standards: UL1741
- UL1973: UL1973
- UL9540: UL9540
- UL9540A: UL9540A
- UL1998: UL1998
- UL1699B: UL1699B
- Electromagnetic Compatibility (EMC) Standard: FCC Part 15 Class B
- Transport Standard: UN38.3
- Read more less
