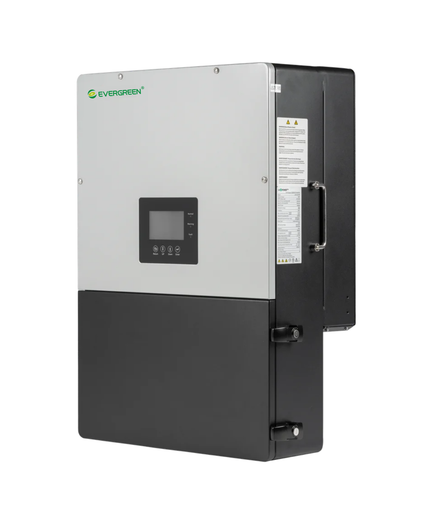

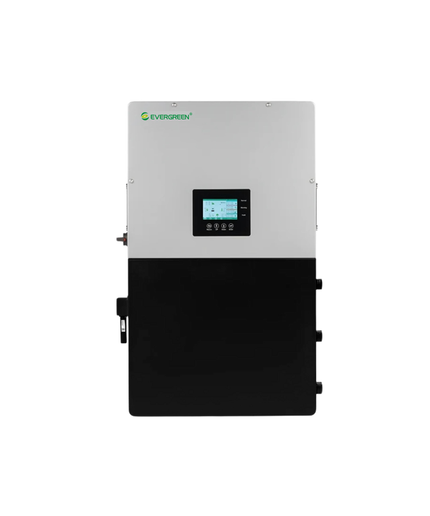

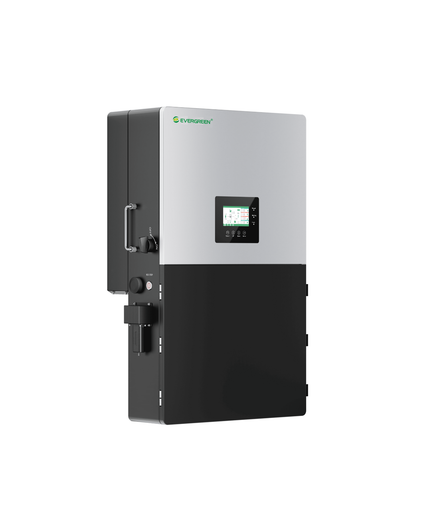

LXP-LB-US 12K Hybrid Inverter
Discover the next-generation hybrid inverter, the comprehensive energy management solution for homes and businesses. Designed for maximum self-consumption and energy... Read more Read more
SKU: SNA US 12K
Share with your friends Share WhatsApp Deel Messenger Email
Specifications
- INPUT (FV CC): INPUT (FV CC)
- Maximum PV input power (W): 18000
- Nominal PV input voltage (V): 360
- Number of independent MPPT inputs: 3 (2/1/1)
- PV input voltage range (V): 100~600
- MPPT voltage range (V): 120~500
- Starting voltage (V): 140
- Maximum PV input current per MPPT (A): 25/15/15
- Maximum PV input short-circuit current per MPPT (A): 31/19/19
- Battery: Battery
- Compatible battery type: Lithium-ion/Lead-Acid
- Nominal battery voltage (V): 48
- Battery voltage range (V): 40~60
- Maximum charge/discharge current (A): 250
- Maximum charging/discharging power (W): 12000
- Force battery activation from PV function: YES
- Grid: Grid
- Nominal AC voltage (V): 240/208
- Nominal AC frequency (Hz): 60
- Nominal AC output current (A): 50
- Rated AC output power (W): 12000
- Maximum AC input current (A): 200
- PF: 0.99 (Adjustable from 0.8 leading to 0.8 lagging)
- THDI: <3%
- Maximum continuous AC current (A): 200
- UPS: UPS
- Rated output power (W): 12000
- Nominal output voltage (V): 120/240; 120/208
- Nominal output current (A): 50
- Nominal output frequency (Hz): 60
- Overvoltage power duration: 2Pn.0.5s
- Switching time: 20ms
- Waveform: Sine wave
- THDV: <3%
- Efficiency: Efficiency
- Max. MPPT Efficiency: 99.9%
- Maximum efficiency: 97.5%
- Battery charge/discharge efficiency: 94%
- CEC Efficiency: 96.9%
- Protection: Protection
- PV reverse polarity protection: Yes
- Overcurrent/voltage protection: Yes
- Anti-island protection: Yes
- AC short-circuit protection: Yes
- Leakage current protection: Yes
- DC Switch: Yes
- AC/DC surge protection: Type III
- Quick disconnect: Yes
- Network monitoring/AFCI/RSD: Yes
- Load switch (current): 200A
- Battery switch (current/voltage): 2*200A/80V
- General: General
- Dimensions (W*H*D): 520*870*285mm/ 20.5 *34.2 *11.2inch
- Weight: 55kg/121.2lbs
- Degree of protection against ingress: IP65/NEMA 4X
- Relative humidity: 0~100%
- Operating ambient temperature range (°C): -25~60 °C >45°C
- Storage temperature range (°C): -25 ~ 60
- Display: Display
- communication interface: Color touchscreen
- RS485/Wi-Fi/CAN: RS485/Wi-Fi/CAN
- Warranty: 5/10 years
- Cooling method: Intelligent cooling
- Topology: Transformerless
- Altitude: <2000m
