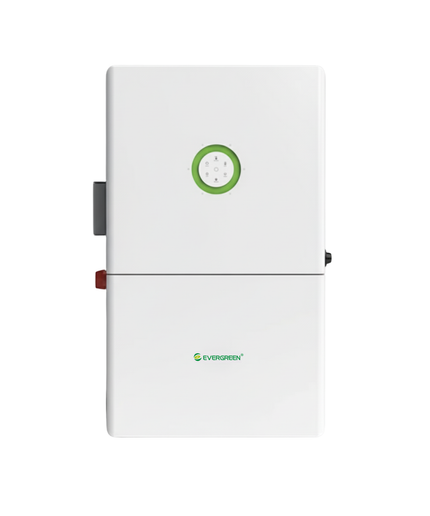

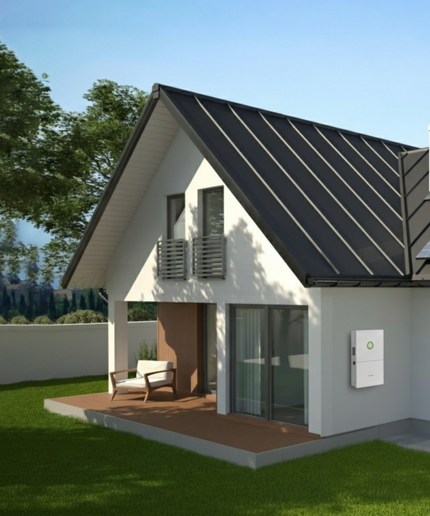

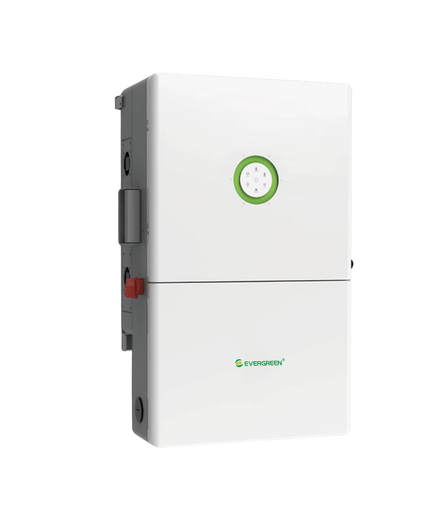

Hybrid Inverter H2 LV 11.4K - LS4 - US
The H2 Hybrid Inverter is suitable for the US market's split-phase electrical grid. The photovoltaic input supports a 1.5 DC/AC... Read more Read more
- Free pickup in our shop(s)
SKU: H2 LV
Share with your friends Share WhatsApp Deel Messenger Email
Specifications
- Model: H2-11.4K-LS4-US
- Maximum recommended PV power [Wp]@ STC: 17100
- Maximum DC input voltage [V]: 600
- MPPT Voltage Range [V]: 90~550
- Nominal DC Voltage [V]: 380
- Starting voltage [V]: 100
- Minimum input voltage [V]: 80
- Maximum DC input current [A]: 16/16/16/16
- Maximum DC short-circuit current [A]: 19.2/19.2/19.2/19.2
- Number of DC connection groups per MPPT: 1/1/1/1
- Number of MPPTs: 4
- DC Switch: Integrated
- Battery type: Lead-acid battery/Lithium battery
- Battery voltage range [V]: 40-60
- Starting voltage [V]: 42-60
- Maximum charge/discharge current [A]: 228
- Rated AC power [W] @ 208Vac: 9880
- Rated AC power [W] @ 240Vac: 11400
- Nominal AC current [A] @ 208/240 VAC: 47.5
- Rated AC Voltage/Range [V]: L1/L2/N/PE. 208V. 120/240V; 183V ~ 229V/211V ~ 264V
- Network frequency/range [Hz]: 60/54-65
- Power factor [cos φ]: 0.8 leading ~ 0.8 lagging
- Total harmonic distortion [THDi]: < 3% (at rated power)
- AC OUTPUT STANDBY MODE: AC OUTPUT STANDBY MODE
- Rated AC power [W] @ 208VAC: 9880
- Rated AC power [W] @ 240VAC: 11400
- Nominal AC current [A] @ 208/240 VAC: 47.5
- Maximum output power (VA. 1min): 12540
- Maximum output power (W: Maximum output power (W
- 10ms): 17100
- Nominal output voltage [V]: 240/120
- Network frequency/range [Hz]: 60/54 ~ 65
- THDv output (@linear load): <3%
- Switching time (milliseconds): <10
- CA [GEN] Inlet: CA [GEN] Inlet
- Maximum continuous input power at 240V: 11400
- Nominal voltage: 240/120
- Nominal current: 47.5
- Maximum efficiency: 97.2%
- CEC efficiency: 96.5%
- Maximum AC-Battery efficiency: 94.2%
- Protection: Protection
- function: function
- Overload protection: Integrated
- ISO Monitoring: Integrated
- DC component monitoring: Integrated
- Ground fault current monitoring: Integrated
- Power grid monitoring: Integrated
- AC output short circuit protection: Integrated
- AC grounding detection: Integrated
- AC surge protection: Type II
- DC surge protection: Type II
- Monitoring island protection: Integrated
- AFCI: Integrated
- RSD: Integrated
- Interface: Interface
- Display: LED/APP+(Bluetooth)
- Communication port: RS485/CAN
- Communications: Wi-Fi/4G (optional)
- Charging monitor: 24 hours
- General information: General information
- Topology type: Transformerless (DC-AC)
- Standby power consumption [W]: <35
- Operating temperature range: -40℃ to +60℃ (-40℉ to 140℉) [discharge operation above 45℃]
- Cooling method: Intelligent air cooling
- Ambient humidity: 0% ~ 100% non-condensing
- Altitude (m): <2000
- Noise [dBA]: <50
- Ingress protection: NEMA 4x(IP65)
- Installation: Wall mount
- Dimensions [H/W/D] [inches]: 810*485*247mm (31.89*19.094*9.724 inches)
- Weight [kg]: 48 kg (105.82 lbs)
- Standard warranty [years]: 10
- Safety/EMC standards: UL 1741
- 1741SB; IEEE1547: 1741SB; IEEE1547
- 1547.1; UL1699B. UL1998; CSA STD. C22.2 No.107.1. FCC. Part15. Class B. Rule21. HE CO 14H: 1547.1; UL1699B. UL1998; CSA STD. C22.2 No.107.1. FCC. Part15. Class B. Rule21. HE CO 14H
- :
