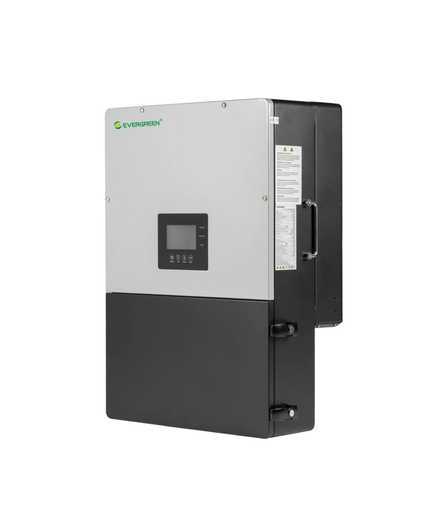

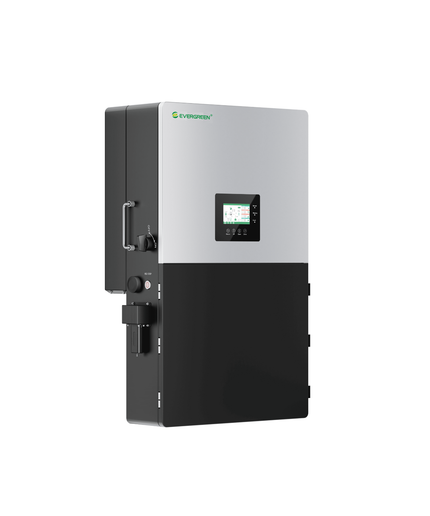

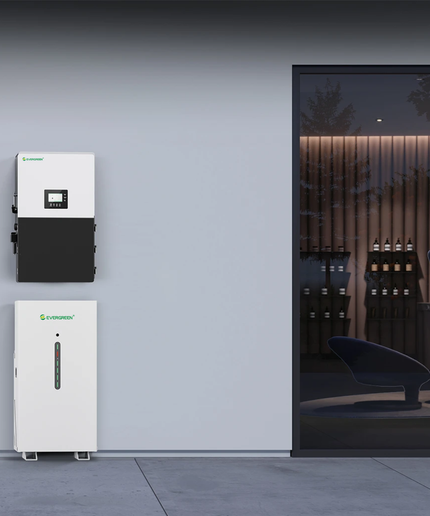

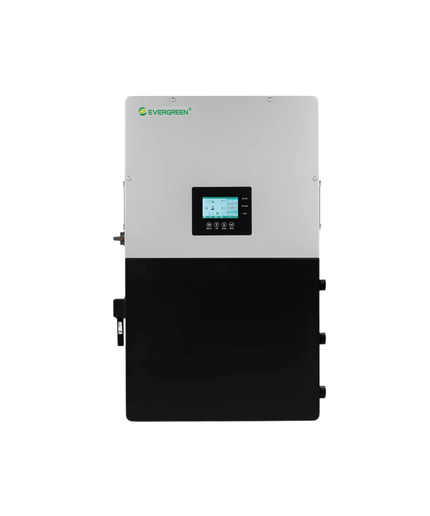

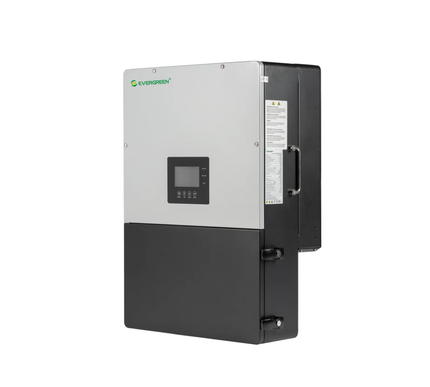

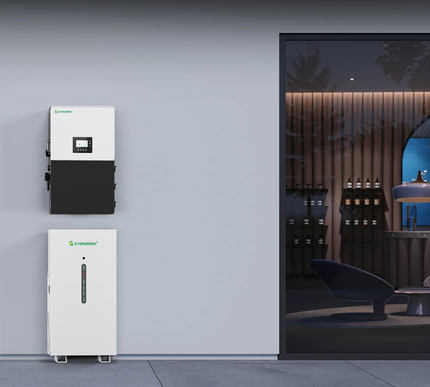

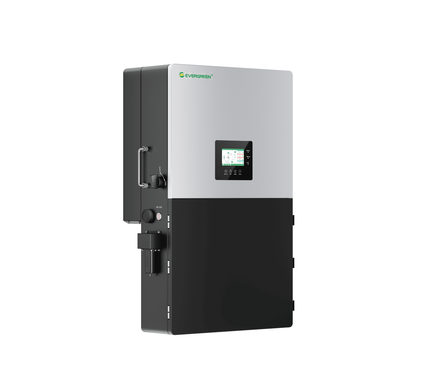

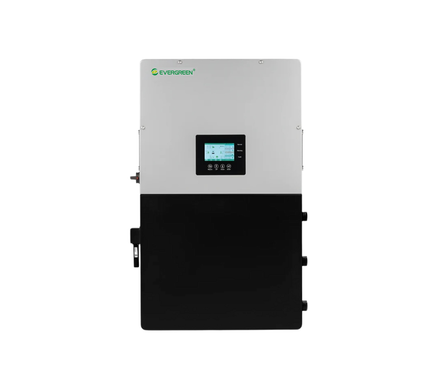

GEN-LB-US 16K Hybrid Inverter
Intelligent Hybrid Inverter for Self-Consumption and Total Backup Introducing the next-generation hybrid inverter, the comprehensive solution for smart energy management.... Read more Read more

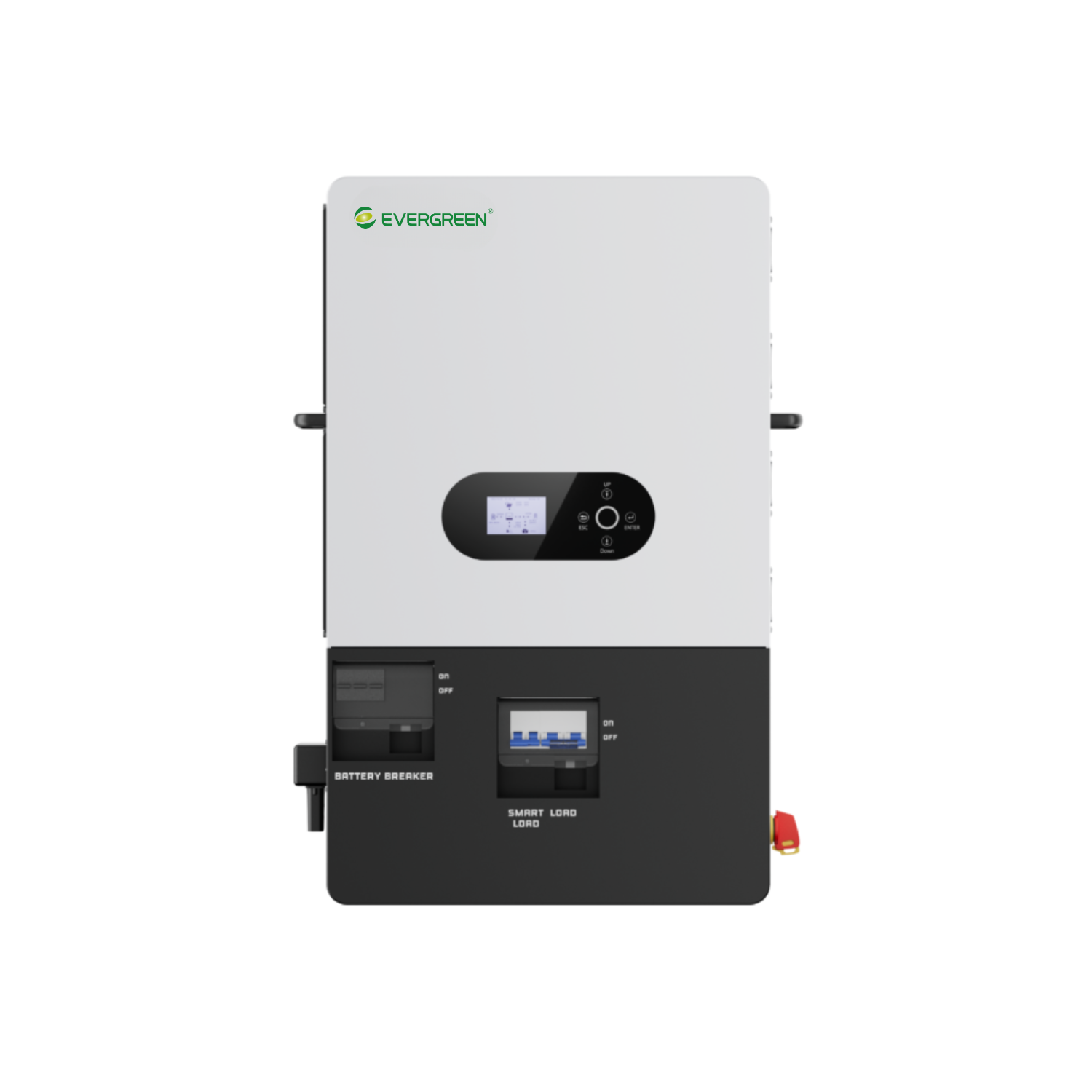

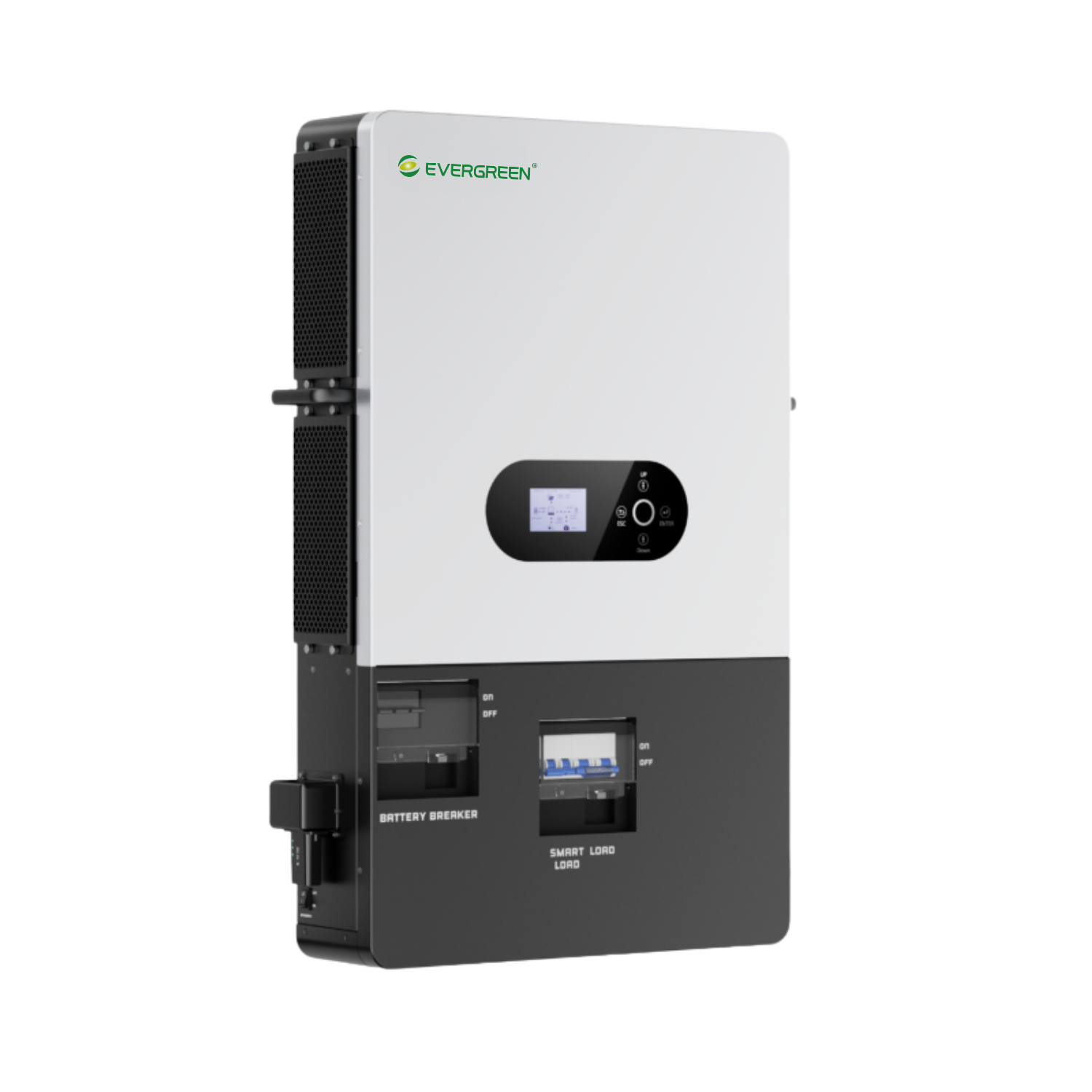

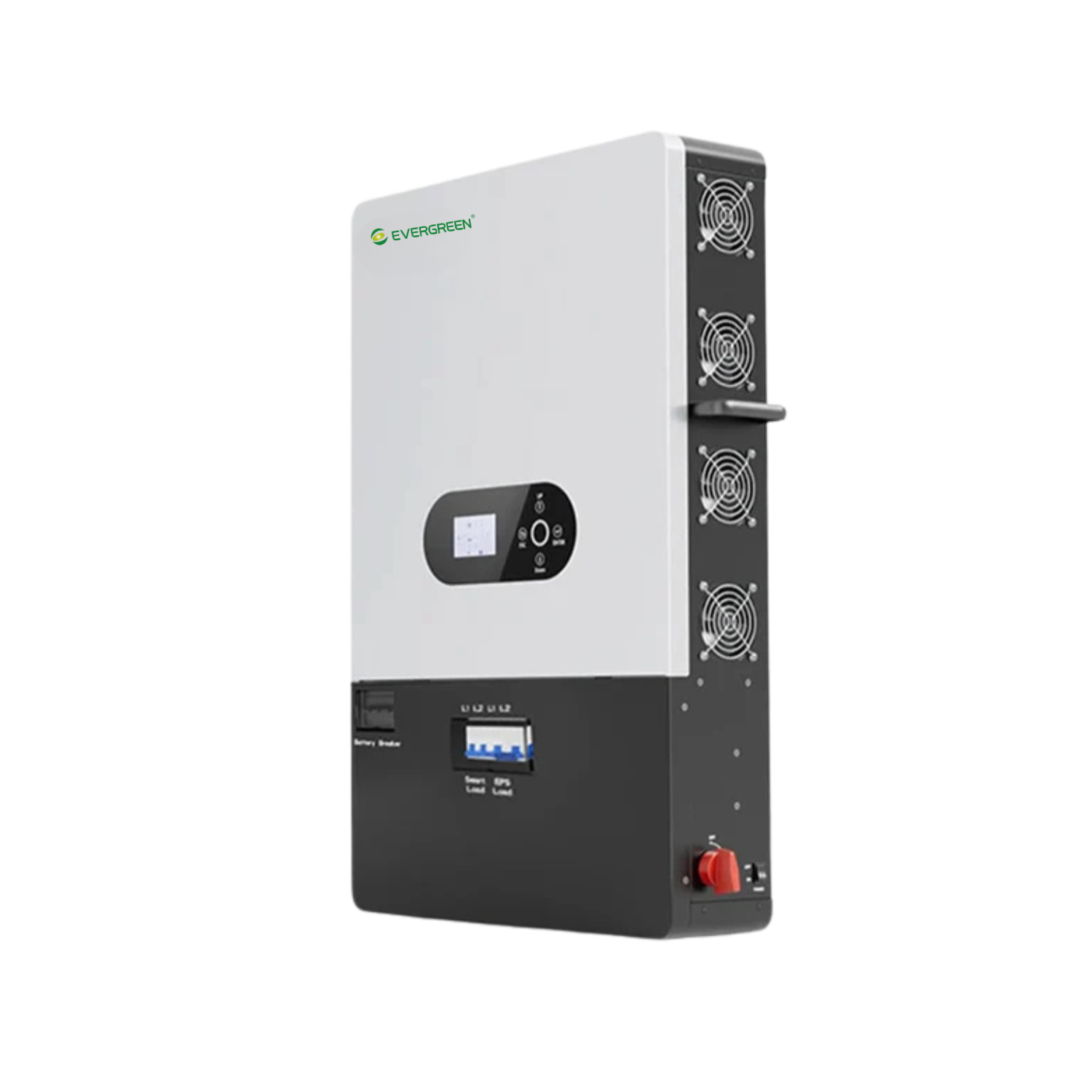

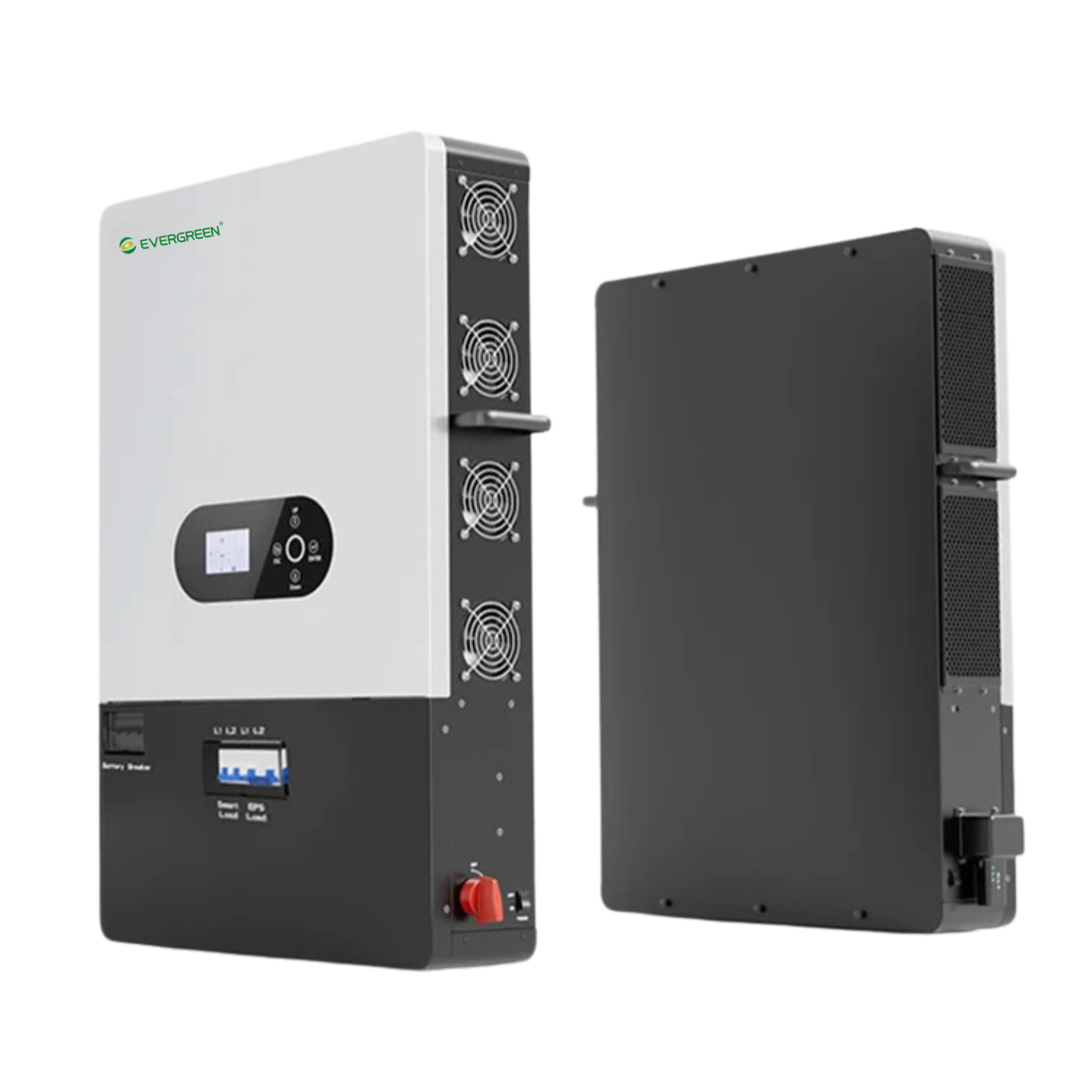

SKU: ECO HÍBRIDO SNA 12K
Share with your friends Share WhatsApp Deel Messenger Email
Specifications
- ENTRANCE (PHOTOVOLTAIC CC): ENTRANCE (PHOTOVOLTAIC CC)
- Maximum photovoltaic input power (W): 24
- 000 (12: 000 (12
- 000/12: 000/12
- 000): 000)
- Nominal photovoltaic input voltage (V): 320
- Number of independent MPPT inputs: 2/(2.2)
- Photovoltaic input voltage range (V): 100-480
- MPPT voltage range (V): 120-385
- Starting voltage (V): 100
- Maximum photovoltaic input current per MPPT (A): 35/35
- Maximum photovoltaic short-circuit current per MPPT (A): 44/44
- Battery: Battery
- Compatible battery type: Lithium-ion/Lead-acid
- Nominal battery voltage (V): 48/51.2
- Battery voltage range (V): 46.4 ~60/38.4 ~60
- Maximum charge/discharge current (A): 250
- Maximum charging/discharging power (W): 12
- 000: 000
- Forced battery activation function from photovoltaic function: Forced battery activation function from photovoltaic function
- grid: YES
- Grid: Grid
- Nominal AC voltage (V): 230
- Acceptable input voltage range (V): 90~280
- Nominal AC frequency (Hz): 60/50
- Rated AC input current (A): 100
- Rated AC input power (W): 24000
- PF: 0.99
- THDI: <5%
- Maximum AC through current (A): 100
- UPS: UPS
- Rated output power (W): 12000
- Nominal output voltage (V): 230
- Nominal output current (A): 50
- Nominal output frequency (Hz): 50/60
- Overload power: Overload power
- switching time (UPS): <7 ms. <10 ms in parallel.
- Waveform: pure sine wave
- THDV: 3%
- GEN: GEN
- Acceptable input voltage range: 230
- Maximum AC input voltage (V): 280
- Maximum AC input current (A): 63
- Nominal input frequency: 50 Hz/60 Hz (automatic detection)
- Transfer time: <10 ms individually. <20 ms in parallel
- THDV: <3%
- Overload protection: 5s >150% load / 10s 110% ~ 150% load
- Efficiency: Efficiency
- Maximum efficiency: 93.5%
- Maximum charging/discharging efficiency: 93.0%
- Maximum MPPT efficiency: 99.0%
- Protection: Protection
- Photovoltaic reverse polarity protection (Y/N): Yes
- Overcurrent/overvoltage protection (Y/N): Yes
- AC short-circuit protection (Y/N): Yes
- Network monitoring (Y/N): Yes
- DC Switch (Y/N): Yes
- DC/AC surge protection: Type III
- Battery reverse polarity protection (Y/N): Yes
- General: General
- Dimensions (W*H*D mm): 530x830x150 mm (17.72*25.59*5.9 inches)
- Weight: 40 kg. 88.2 lbs
- Protection rating against water ingress: IP20
- Operating environment temperature range (°C): 0~45
- Storage temperature range (°C): -15~60
- Relative humidity. Display: Relative humidity. Display
- communication interface: LCD+RGB. RS485 / Wi-Fi / CAN
- Warranty: 2 years
- Cooling method: Intelligent cooling
- Topology on the AC/battery side: Transformerless/Transformer
- Altitude (m): <2000
- Noise emission (typical): <50 dB
- :
